WDHM01A-01
3H INC.
Product Description
Specification
WDHM01A-01 | WDHM01B-01 | WDHM01-01 | |
Regulation | 389*15.2*30 | 416.4*14.2*30 | 299.2*14.5*30 |
Main materials | Plastic+alloy | Zinc cabinet+ | Plastic+alloy |
Applicable scenes | Wooden doors,aluminum alloy doors,glass doors | Wooden doors,aluminum alloy doors,glass doors | Wooden doors,aluminum alloy doors,glass doors |
Max load bearing | 80KG | 80KG | 30KG |
Min.thickness of door | 8mm | 8mm | 8mm |
Min.width of door | 470mm | 600mm | 380mm |
Buffering direction | Bidirectional | Bidirectional | Unidirectional |
Buffering time | 2~5s | 2~5s | 2~5s |
Buffering stroke | 65mm | 75mm | 45mm |
Life service test | 5w~8w | 5w~8w | 5w~8w |
Difference | Large load bearing,cost-efficient, | Large load bearing, zinc alloy cabinet,high quality raw material | Single directional,cost-efficient |

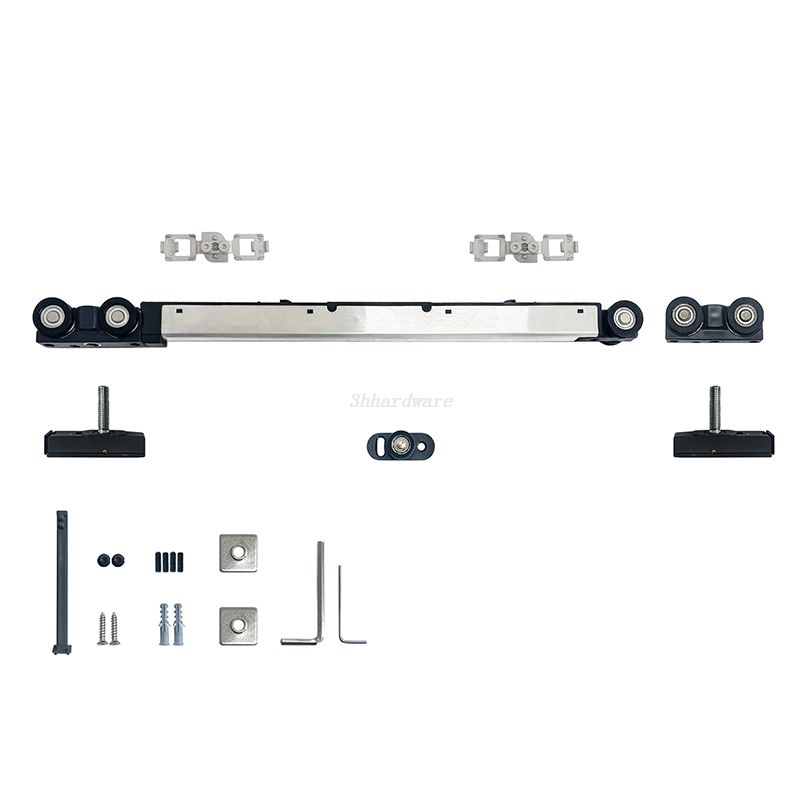

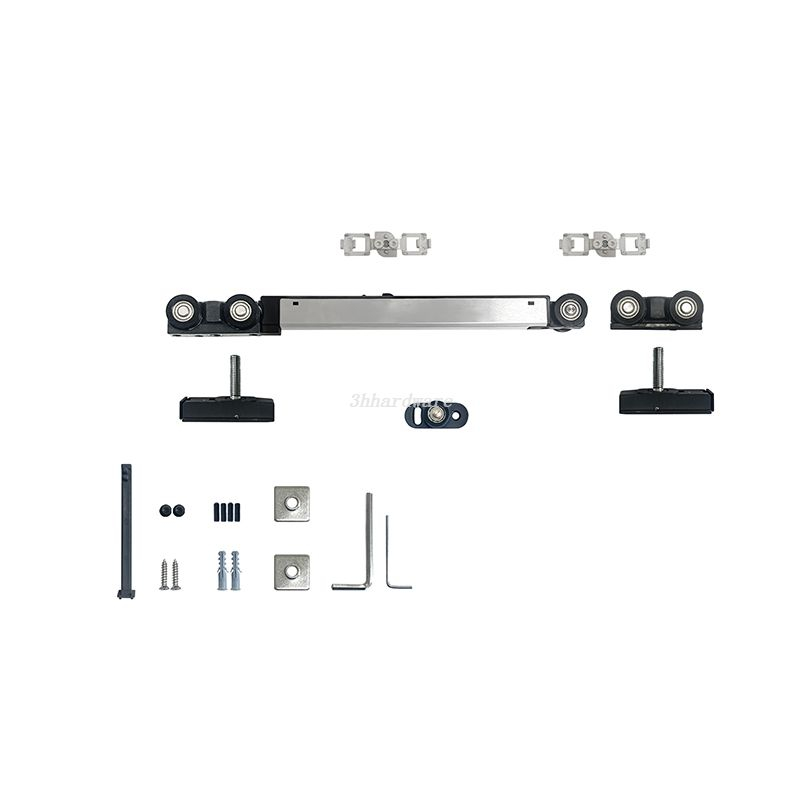

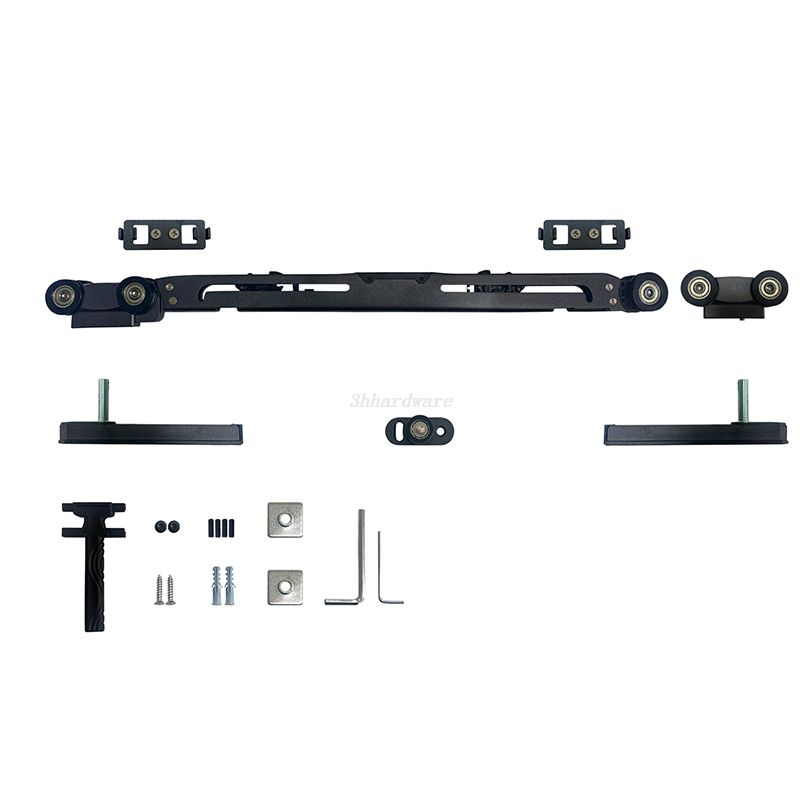

Specifications of hanging wheel sliding door hardware system
Product Description
The advantages of hanging wheel sliding door hardware system:
1.Adapted to extremely narrow doors, the narrowest can be adapted to 8mm (glass).

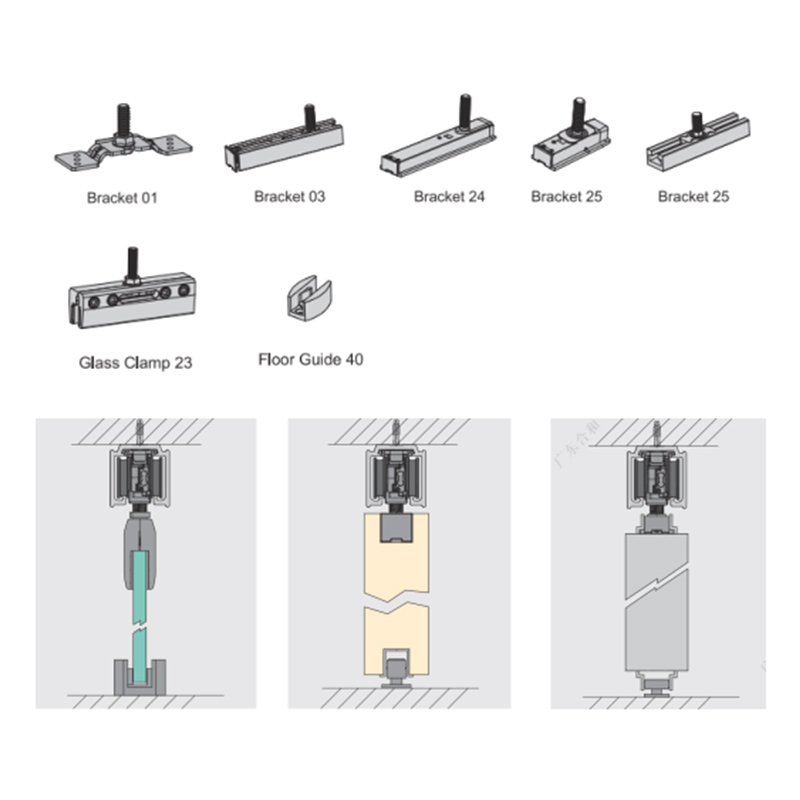

2.The buffer is configured with a variety of hanging codes, which can be applied to more scenarios.
3.The pulley block can be assembled separately in the track, without reserving maintenance holes, easy to replace and install.
4.Smooth operation, silent buffering.
